Reciprocating Plunger Process Pumps

Ram Pumps specify, design, manufacture and install high quality, efficient and reliable pumps both into the current market and within our solution based project packages. All pump units meet the requirements of the most demanding industry applications, environments and specifications as well as our core design basis for API 674 and Non API units.

Ram Pumps has an almost infinite variation of build options due to more than 40 years experience in constructing special purpose projects and packaged pumping equipment. The full range of pumps have been purposely designed without integral gearboxes to ensure we can provide the exact speed and power to meet the required duty point.

Suitable rated standard electric motor or any degree of special build or flame proof motors are selected in accordance with our client’s specification. Special drives inclusive of DC Motors, Torque Converters from AC Inverters to Diesel, Petrol or Gas Engines, to variable capacity mechanical or hydraulic power packs are available. Should a further transmissions step downs be required these can be provided by a gearbox, V-belt or timing belt drive.

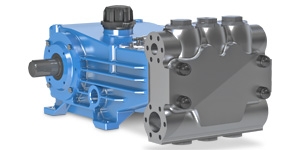

50 Series Plunger Pumps

50 Series Plunger Pumps

Designed for Continuous Duty Operation up to 45 kW
Flows to 264 lpm (Non-API) / 185 lpm (API)
Pressures to 1,599 BAR G

75 Series Plunger Pumps

75 Series Plunger Pumps

Designed for Continuous Duty Operation up to 65 kW
Flows to 340 lpm (Non-API) / 303 lpm (API)
Pressures to 1,121 BAR G

150 Series Plunger Pumps

150 Series Plunger Pumps

Designed for Continuous Duty Operation up to 135 kW
Flows to 907 lpm (Non-API) / 1,209 lpm (API)
Pressures to 341 BAR G

170 Series Plunger Pumps

170 Series Plunger Pumps

Designed for Continuous Duty Operation up to 282 kW
Flows to 2,283 lpm (Non-API) / 1,712 lpm (API)
Pressures to 341 BAR G

250 Series Plunger Pumps

250 Series Plunger Pumps

Designed for Continuous Duty Operation up to 175 kW
Flows to 1,209 lpm (Non-API) / 907 lpm (API)
Pressures to 1,147 BAR G

375/500 Series Plunger Pumps

375/500 Series Plunger Pumps

Designed for Continuous Duty Operation up to 450 kW
Flows to 1,450 lpm (Non-API) / 967 lpm (API)
Pressures to 418 BAR G

675 Series Plunger Pumps

675 Series Plunger Pumps

Designed for Continuous Duty Operation up to 550 kW
Flows to 2,417 lpm (Non-API) / 1,612 lpm (API)
Pressures to 418 BAR G

100 Series Plunger Pumps

100 Series Plunger Pumps

Designed for Continuous Duty Operation up to 110 kW
Flows to 709 lpm (Non-API) / 552 lpm (API)
Pressures to 1,121 BAR G
